Multi-Lens Cameras

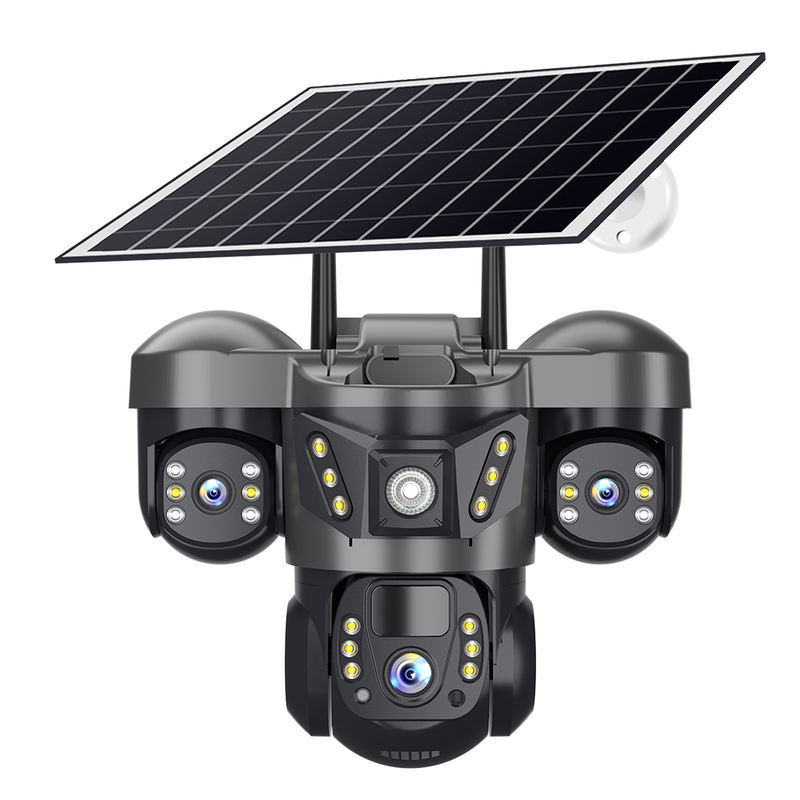

6MP Security CCTV PTZ Camera with 3 Lens and 3 Screens(VTS29)
6MP triple-lens CCTV PTZ camera with three screens, 23 dual-core LEDs and AI human detection.
Specifications
- Resolution
- 6MP (2+2+2)
- Sensor
- Three 1/4.6 inch CMOS, H.265/15FPS
- Lens
- 3 x 4mm, 3 x 80° FOV
- Pan-Tilt
- 355° horizontal, 90° vertical, 6 preset points
- LEDs
- 23 dual-core (right 6 + left 6 + PTZ 11)
- Night Vision
- Colour night vision, IR-cut auto, IR 5-8m, white LED ON/OFF/Auto
- Audio
- Two-way audio, built-in mic and speaker, ADPCM
- Alarm
- AI human intrusion + motion detection, picture push
- Storage
- TF card max 128GB plus optional cloud
- Protection
- IP66, -10°C to +50°C, <=95% RH, indoor/outdoor
Where This Product Fits
A triple-lens PTZ camera with three-screen coverage, for wide panoramic surveillance of villas, farms, construction sites and warehouses.
Construction and Specifications
Triple-lens 6MP (2+2+2) with three 1/4.6 inch CMOS sensors at H.265/15FPS. Three 4mm lenses give 3x80° field of view for wide panoramic coverage, and the PTZ supports 355° horizontal and 90° vertical rotation with 6 preset points. Illumination uses 23 dual-core LEDs (right 6, left 6, PTZ 11). Colour night vision uses auto IR-cut with a 5-8m IR range and white LED modes ON/OFF/Auto with human-triggered activation. The camera provides two-way audio with built-in mic and speaker (ADPCM), AI human intrusion plus motion detection with alarm and picture push, and dual storage via a TF card up to 128GB plus optional cloud. It is IP66 rated for -10°C to +50°C at up to 95% RH, indoors or outdoors.
Ordering Guidance
Confirm the 4G or WiFi version and your expected order quantity so we can quote the correct configuration.
